Description

0dB Pro System – Stealth Silencer Kit

Stealth Silencer Pro and Extension Module Mini Moderator

The Stealth Silencer Kit is part of the 0dB Pro System, developed as part of the Performance Center Catalogue. The 0dB Pro System represents the pinnacle in airgun silencer and barrel tuner (harmoniser) technology.

Modular Design

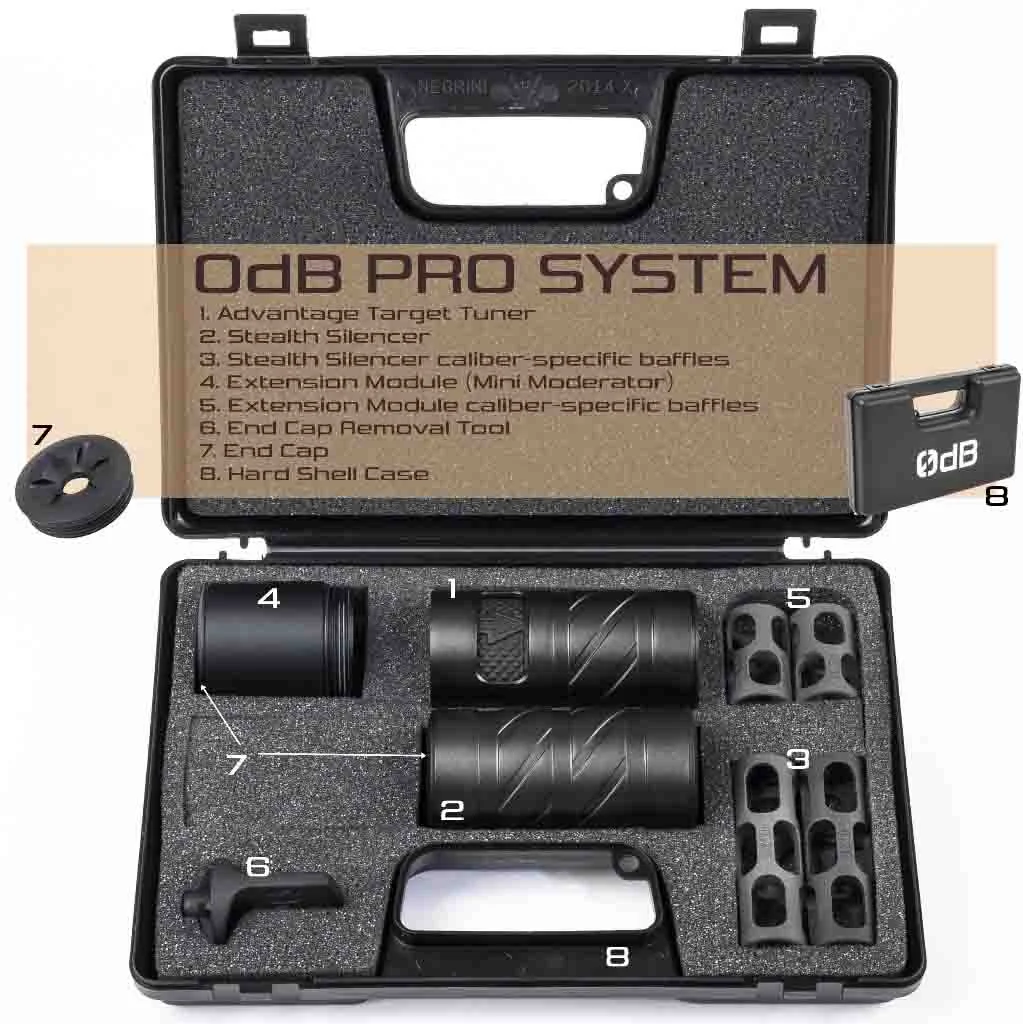

The 0dB Pro System is modular by design and is available in kit forms or individual components, as follows:

• 0dB Ultimate Pro System Kit
• 0dB Advantage Target Pro System Kit
• 0dB Stealth Silencer Pro System Kit [This listing]
• 0dB Advantage Target Pro Tuner
• 0dB Pro System Extension Module
• 0dB Pro System End Cap Removal Tool

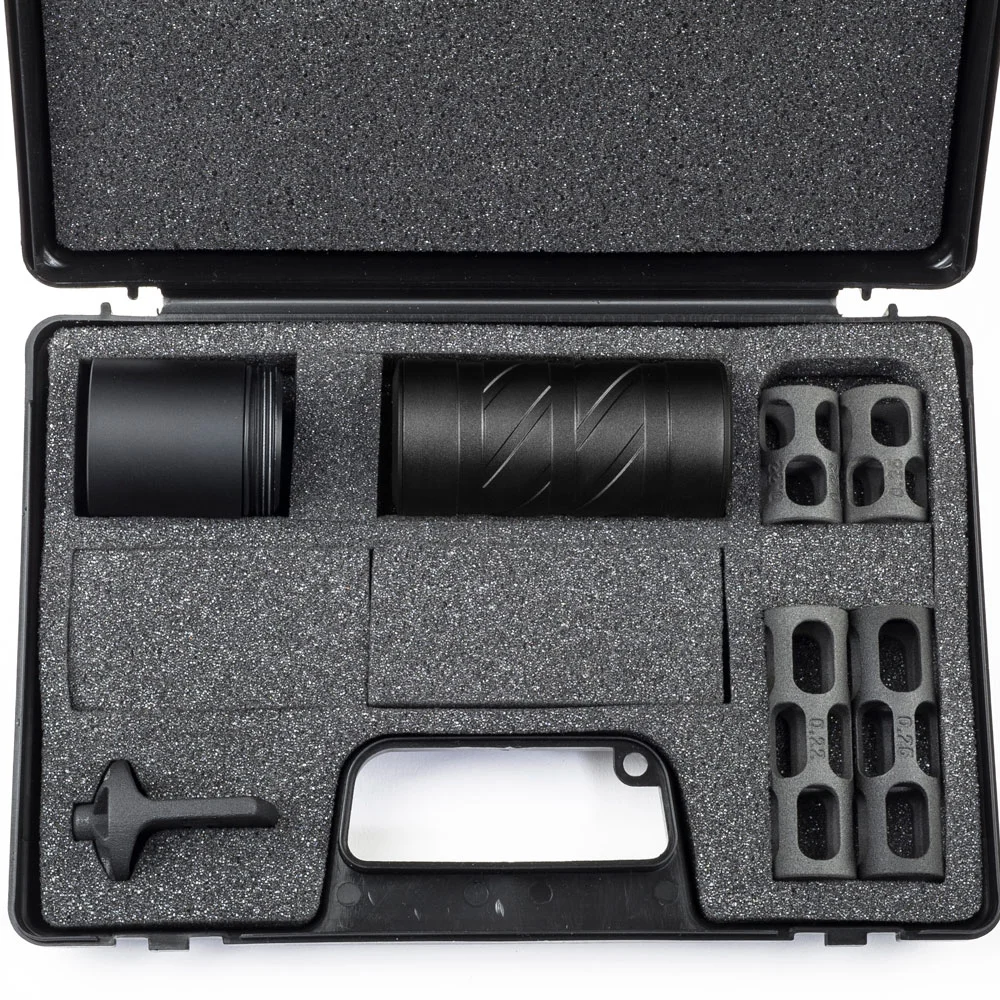

This listing is for the 0dB Stealth Silencer Pro System Kit, which contains the following items:

• x1 Poly hard shell case
• x1 Stealth Silencer (with end cap), 1/2″ UNF female
• x1 Extension Module (mini moderator)
• x3 Baffles (.177/.22, .25 and .30) for Stealth Silencer
• x3 Baffles (.177/.22, .25 and .30) for Extension Module
• x1 End Cap Removal Tool

Refer to the relevant sections below for more information on the individual components of the 0dB Pro System…

Stealth Silencer Pro

The Stealth Silencer Pro (SSP) suppresses the sound of your rifle’s muzzle report. It can be set up to suit .177/.22, .25 and .30 air rifles because it is caliber-specific. Its female thread fits ½” UNF threaded muzzles.

The Stealth Silencer Pro is lightweight aluminium, hard-anodised and satin bronze finished. It measures 85mm long, weighs just 94g with an external diameter of 40mm.

The SSP is supplied with three, caliber-specific baffles, each marked accordingly. The baffles are acoustically designed and manufactured from composite, using state-of-the-art 3D Additive Printing technology. To change or clean a baffle, simply unscrew the silencer end cap with the supplied tool. Important: Always fit the correct baffle to suit the caliber of your rifle.

The silencer strips down, so it is easy to clean. Access to the acoustic foam, baffle and gauze is via its removable end cap. This unscrews with the End Cap Removal Tool. Every SSP Kit comes with one, but the tool can also be purchased separately.

The Stealth Silencer Pro is only available as part of a kit. The kit comes in a foam-filled, hard polypropylene case, with a lid marked ‘0dB’.

Regardless of kit designation, the Stealth Silencer Pro System also includes the screw-on Extension Module. You can also fit more Modules, however these must be purchased separately.

Pro System Extension Module (mini moderator)

The 0dB Pro System Extension Module is an option to add additional sound suppression qualities to either the Stealth Silencer Pro (SSP) or Advantage Target Pro (ATP) Tuner. It is made from aluminium with an anodized, matt black finish. When attached, it adds 38mm and 57g.

To fit the Module, simply screw it on to the front of the Silencer or Tuner after removing the main unit’s end cap with the tool. Then re-fit the end cap to the Module.

Like the Stealth Silencer, the Module is also caliber specific. It features one acoustic 3D-printed baffle. Three are supplied, covering .177/.22, .25 and .30 caliber air rifles. The Module is easy to strip for baffle replacement and/or cleaning using the End Cap Removal Tool.

The Extension Module is provided with the 0dB Pro System kits. If you buy an Extension Module separately, it will not come with either an End Cap, nor an End Cap Removal Tool.

End Cap Removal Tool

This Tool removes the end cap of the Silencer. This lets you change baffles or clean it. You also use the tool to fit/remove an Extension Module to/from either the Silencer or Tuner.

A 0dB Pro System End Cap Removal Tool is supplied with every Pro System Kit. However, the tool is not supplied when either the Advantage Target Pro Tuner or Extension Module is purchased individually.

Advantage Target Pro Tuner

(Not included with this Stealth Silencer Pro Kit)

The 0dB Pro System Advantage Target Tuner is the result of many years’ R&D. It has been developed from data we collected from our experience in the Extreme Benchrest target shooting arena. We have worked closely with some of the world’s best competition shooters to develop a barrel harmonic tuning system, commonly known as a Barrel Tuner. This effectively lets the shooter fine-tune their set-up to optimise accuracy for the caliber/power of the rifle and the ambient conditions.

The Advantage Target Pro (ATP) Tuner is available on its own, or as part of a kit. All the ATP kits also include the Pro System Extension Module which additionally adds sound suppression to the front of the Tuner unit.

The ATP is not caliber-specific. However, the Extension Module, if used, is. The Tuner is aluminium, bronze-anodised and 40mm in diameter. It measures 86mm long and weighs 154g. It has a female thread to screw on to a ½” UNF threaded muzzle.

You ‘tune’ the barrel by simply rotating the internal weight inside the housing by hand. A large aperture makes it easy to rotate, and there is a clear arrow to provide a visual reference of the current setting.

Note: When purchased separately (ie not part of a kit), the ATP comes with an end cap ready-fitted. However, individual units do not come with the End Cap Removal Tool, so you will need to purchase this separately if you decide to fit an Extension Module at a later date.
